Full Function Trademark Cutter-Folder

Full Function Trademark Cutter-Folder

Characteristics

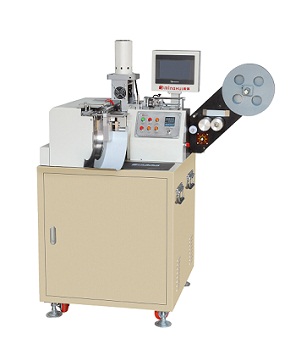

MH-900 type label shearing and folding machine is of a compact structure and simple operation and an automatic sliding path of label and able to shear and fold 5 types of trademark by only rplacing the mould, uses a nixie circuit to actuate the maun machine and carry out a soft initiation and is fitted with a high performance photoelectric system to automatically indentity trademarks and stop at once in case of non-trademark of false one.
Futhermore, the system holds the feature of adjustable label length without any tool and can be separetely fitted with an electronic eye system upon the need of users. This system is mainly used for printing labels and cutting and folding those withot push-line

Model No MHJ-050 (SM-44)
Folding method Cut into slices & middle fold
Folding length 20-100mm
Cutting Width 50mm
Cutting speed Max 220pcs/min
Power Single phase 22v,50-60Hz,2kw
Specifications 1300L x 1100W x 1500H (MM)
Weight 230kg
Country of origin China
